Tomcat i7230A S5160

                                                       Chapter 2: Board Installation

2.11   Installing the Power Supply

There are two power connectors on this motherboard. By default, this motherboard requires

that you have an ATX12V power supply that has the standard ATX style 20 pin connector, as

well as an additional 4 pin square connector. The CPU power is provided by the onboard

switching voltage regulator, which is sourced by +12V power. This +12V CPU power source is

from the onboard 4 pin square connector. The +12V power on the 20 pin ATX power

connector is for system board and separated from CPU +12V regulator power source.

Therefore, the CPU will not be powered if you do not connect the 4 pin square ATX 12V power

connector.

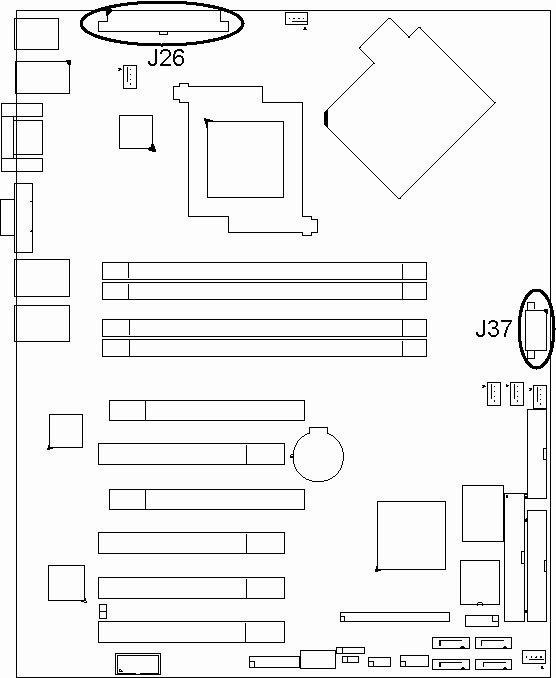

J26: 24 pin EPS 12V power connector

J37: 8 pin EPS 12V power connector

Note

Unplug the power supply before plugging in the 24 pin and 8 pin

power cables to motherboard.

2.12   Finishing Up

Congratulations on making it this far! You're finished setting up the hardware aspect of your

computer. Before closing up your chassis, make sure that all cables and wires are connected

properly, especially IDE cables and most importantly, jumpers. You may have difficulty

powering on your system if the motherboard jumpers are not set correctly.

In the rare circumstance that you have experienced difficulty, you can find help by asking your

vendor for assistance. If they are not available for assistance, please find setup information

and documentation online at our website or by calling your vendor's support line.
