Connections

Front panel

The MASTER PHONES jack carries the same

signal as the MASTER OUTPUT connectors and is

intended as a headphone jack. The output level can

Headphones

be adjusted with the knob at the left of the jack.

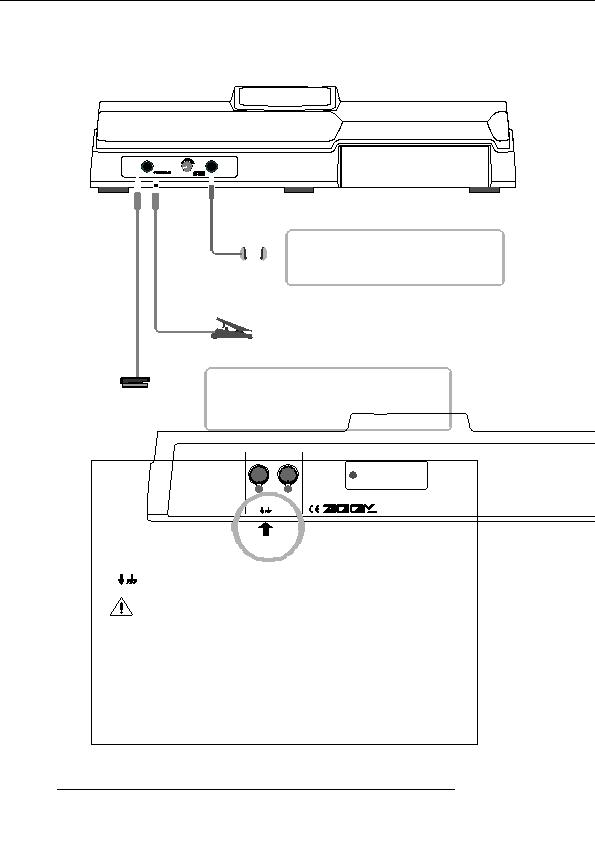

Expression pedal

(ZOOM FP01/FP02)

You can connect the separately available ZOOM FS01 or

FP01/FP02 to the CONTROL IN jack. The FS01 can be

used for playback start/stop control of the recorder or for

Foot switch

punch in/punch out control. The FP 01/FP 02 can be

 (ZOOM FS01)

used to control effect parameters.

Rear panel

Grounding jack

I About grounding

Depending on installation conditions, a slight electrical charge may be felt when

touching a metal part of the MRS 802. If you wish to avoid this, ground the unit

Warning

by connecting the ground screw on the bottom to a good external ground.

To prevent the risk of accidents, never use one of the following for grounding:

  Water pipe (risk of electric shock)

  Gas pipe (risk of explosion)

  Telephone wiring ground or lightning arrestor (risk of lightning stroke)
