6.3  Wrong IP address

If your IP address is a public

address, your system could be

slower than normal. It will be

better to assign a private address

instead as shown in the following

example.

Example: 192.168.46.21

Note:

Private IP addresses are

assigned the following ranges:

10.0.0.0   10.255.255.255

172.16.0.0  172.31.255.255

192.168.0.0   192.168.255.255

If the IP address of your DVB adapter is not within one of the ranges above it is a public IP address

and it is recommended that you change it to a private IP address (see page 44 for details).

Your DVB S device may have a public IP address if you failed to restart your PC after you installed the

DVB S device drivers. In this case, you should restart your PC, and relaunch the ASTRA proxy client

installation routine (see Section 3).

If you relaunch the ASTRA proxy client installation routine, follow the instructions from Section 3.

6.3.1 Deactivated binding

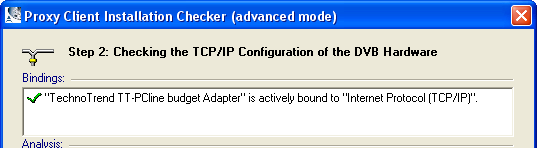

If the TCP/IP protocol is not correctly bound to your DVB card, you will get the following message:
